How to use Redstone Repeater for time-based puzzles in Minecraft

After exploring mechanics like buttons, levers, and tripwires, we find ourselves in a new room deep beneath the previous challenge  -  a basement with seven levers, a mysterious book, and a single button. This is where we dive into the fascinating world of redstone repeaters. Unlike other components, repeaters introduce the concept of time into your redstone puzzles, letting you control delays and sequence actions with precision.







What are redstone repeaters?



     Redstone repeaters are blocks that receive a redstone signal and transmit it forward with a configurable delay. They can also extend weakened signals beyond 15 blocks and control signal direction, preventing it from flowing backward. Each repeater offers a delay from 1 to 4 ticks (1 tick = 0.05 seconds). This makes them perfect for traps, timers, and sequence-based mechanisms. We’ll now explore how to build time-based puzzles using this simple but powerful tool.







Puzzle 1 Timed lever combination

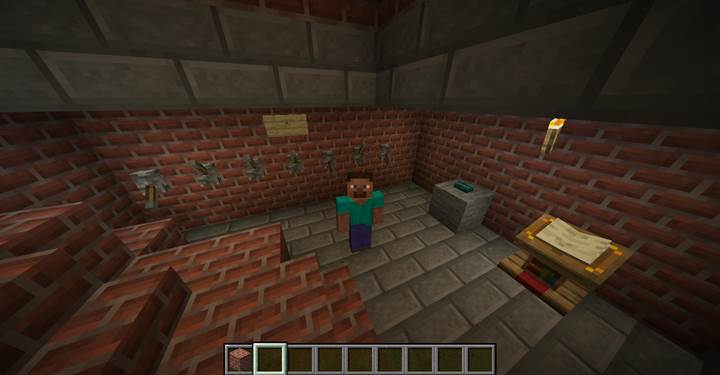

     As we enter the basement, we see a button, seven levers, and a sealed stone door. A nearby book hints at a combination. When the player presses the button, it starts a chain of 10 redstone repeaters, each set to maximum delay (4 ticks), forming a total delay of roughly 5 seconds. Near the end of the chain, the signal branches off to a command block:



     /execute if block -65 65 178 lever[powered=true] if block -66 65 178 lever[powered=false] if block -67 65 178 lever[powered=false] if block -68 65 178 lever[powered=false] if block -69 65 178 lever[powered=true] if block -71 65 178 lever[powered=true] run fill -71 64 172 -71 66 172 air





     This command checks the exact lever positions. If the combination is right, it removes the wall blocking the way. However, a second signal continues through more repeaters toward another command block:



     /fill -71 64 172 -71 66 172 stone





     If the player doesn't enter the door quickly enough, it closes again. The player must read the book, flip the correct levers (1, 5, 7), and jump through the door within five seconds. This sequence uses both timing and logic in a way that forces urgency. Want to spice it up? Add ambient music or flickering lights using redstone lamps and additional command blocks.





Puzzle 2 The labyrinth trap

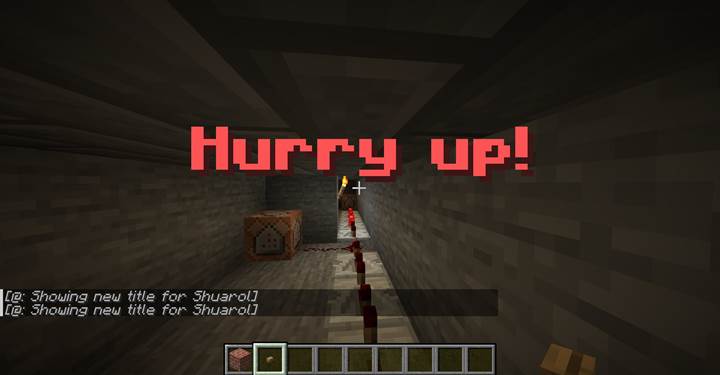

     After passing through the first door, the player lands on a pressure plate. It silently starts a timer using another chain of redstone repeaters. As the signal progresses, it activates:



     /playsound minecraft:entity.wither.spawn master @a ~ ~ ~ 1 1



     /title @a title {"text":"You have little time! Hurry!","color":"red"}





A wave of panic sets in as the player navigates the dim labyrinth. At the end lies a button  -  press it in time, and it triggers:



     /setblock -70 70 182 air



     It removes the repeater chain or you can redirect the signal, preventing it from reaching this trap command:



     /teleport @p -70 64 176





     This teleport sends the player back to the beginning if they fail to reach the button in time. Want to increase tension? Set up command blocks to summon zombies, collapse walls, or unleash arrows while the timer runs. With repeaters, you can control exactly when each event occurs.





Puzzle 3 The fire room

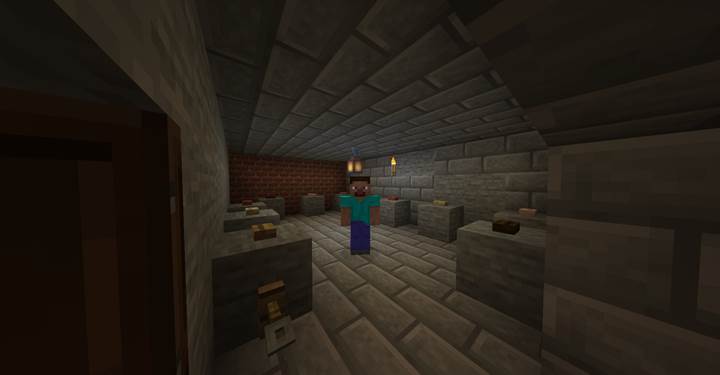

After escaping the maze, the player enters a room lined with buttons. A tripwire at the entrance activates another chain of repeaters. Somewhere in the room is the correct button  -  the rest are decoys.

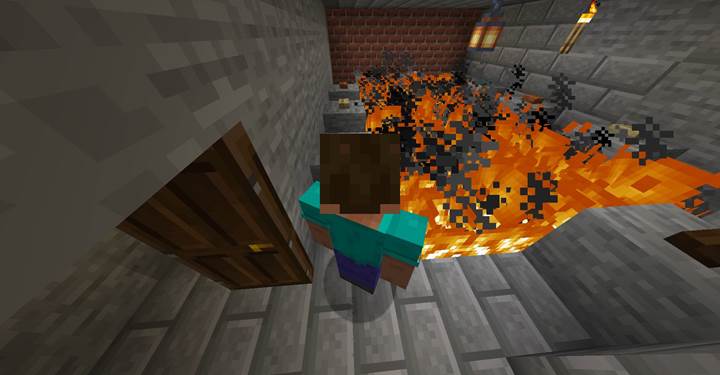

     When the timer ends, if the correct button wasn't pressed, fire engulfs the room:



     /fill -60 65 160 -50 65 170 minecraft:fire

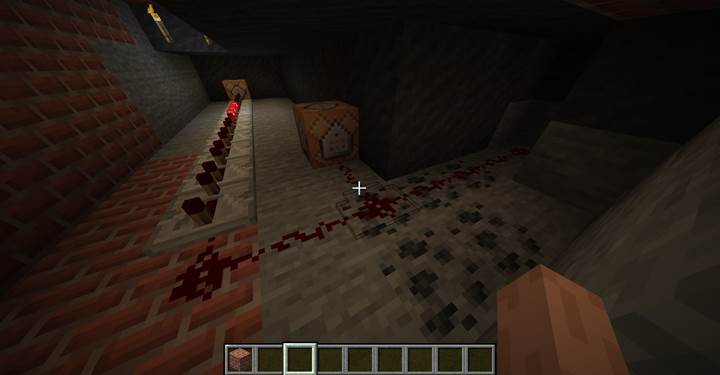

     You can even customize the fire with block states like [age=15] to control its spread. Use directions like east, north, and up to change how flames behave or attach to nearby blocks. To help the player, a redstone torch appears briefly above the correct button a moment before the disaster:



     /setblock -55 66 165 redstone_wall_torch[facing=up]



     timed with a repeater chain from the tripwire trigger. This tiny clue adds urgency and drama.



     Each incorrect button could trigger:



     /summon minecraft:skeleton ~ ~ ~



     or



     /playsound minecraft:entity.ghast.scream master @a



     encouraging caution and clever observation. The player must make a fast decision based on sound, visuals, or even patterns in the room.







Why use repeaters?



     Repeaters give you power over time. Here’s what we’ve seen:



     - Delay before a door opens and closes.



     - Countdown to teleport.



     - Signal split to multiple traps or effects.



     - Time-limited search for the correct button.





     You can customize timing by changing the number of repeaters and their delay. A single repeater can give 0.05 to 0.2 seconds of delay. Ten repeaters on max delay give almost two seconds. Combine 25 for full countdowns. Want advanced logic? Use pistons, observers, or even comparators to gate signal flows and create branching timelines.





Final thoughts



These puzzles show only the beginning of what redstone repeaters allow. The more you explore, the more elaborate your designs can become  -  puzzles with parallel outcomes, branching traps, and even synchronized light shows.
